Antenna

UHF(920MHz) Antenna

Mini type antenna
ApplicationFor assembling to device or suitable using on desk top.

Mini Guard Rail Antenna

Feature

  • ■Compact antenna which can put on desktop or side of small convey device.
  • ■Near field communication range from 0mm to 75mm.
  • ■Suitable antenna for FA device or products management.

Specification

Products code IPJ-A0303-000
Frequency 865-954 MHz
Polarization character linearly polarized wave
Antenna connector SMA-J
Gain -20 dBic(Near Field)
Dimension 69.85×133.35×19.05 mm
Weight 114 g
Waterproof grade IP41

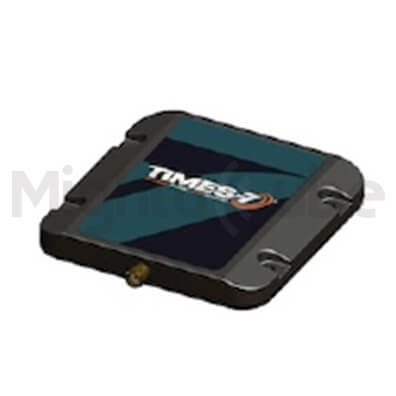

Near field antenna A1001

Feature

  • ■Compact design antenna.
  • ■It can use at limited space.
  • ■Reading item by each products.

Specification

Products code A1001
Frequency 864-928 MHz
Antenna connector SMA-J
Gain -20 dBi
Dimension 82×82×9.5 mm
Weight 100 g
Waterproof grade IP65

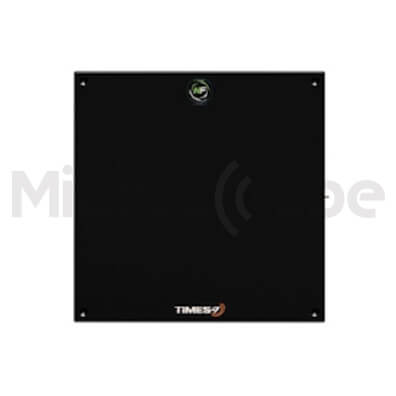

Near field antenna A1030

Feature

  • ■Reading item by each products.
  • ■Largest usable working area in a near field antenna.
  • ■Sutable for the bit a bizg size tihings such as Book.

Specification

Products code A1030
Frequency 920-928 MHz
Antenna connector SMA-J
Gain < -15dBi typical
Dimension 300×300×6.5 mm
Weight 500 g
Waterproof grade IP53

Circularly polarized wave Antenna A6031C

Feature

  • ■It realized item level reading.
  • ■It make good reading area as near field UHF antenna.

Specification

Products code A6031
Frequency 920-928 MHz
Polarization character Circularly polarized wave
Antenna connector SMA-J
Gain 4dBic
Dimension 275×214×12 mm
Weight 600 g
Waterproof grade IP65

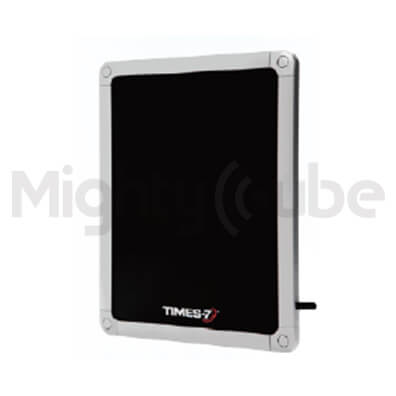

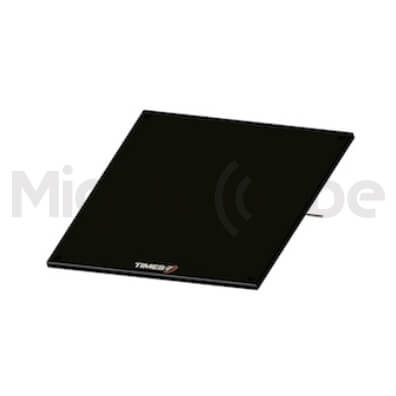

Circularly polarized wave Antenna A7030C

Feature

  • ■It realized item level reading.
  • ■Suitable antenna to install shelf with thickness 8.5mm.
  • ■It can work with connect several antenna.

Specification

Products code A7030C
Frequency 920-928 MHz
Polarization character Circularly polarized wave
Antenna connector SMA-J
Gain 6 dBic
Dimension 300×300×8.5 mm
Weight 750 g
Waterproof grade IP54
Standard Antenna
ApplicationFor using Gate type, Overhead installation, and outdoor use.

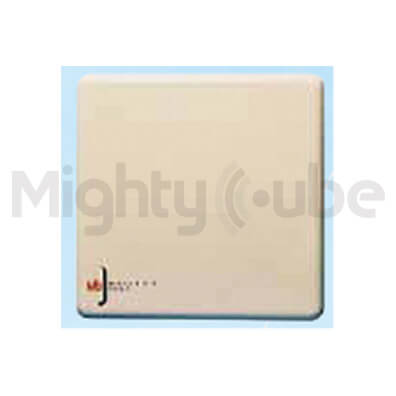

Circularly polarized wave Antenna MT-263020-NRH/NLH/K

Feature

  • ■High gain, suitable for bulk reading.
  • ■Available long rang reading.
  • ■Available outdoor using with IP67.

Specification

Products code MT-263020/NRH/-NLH
Frequency 902-928 MHz
Polarization character Circularly polarized wave
Antenna connector N-J
Gain 11 dBic
Dimension 630×320×40 mm
Weight 2.8 kg
Waterproof grade IP67

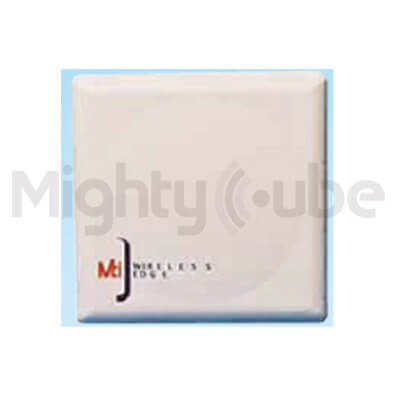

Circularly polarized wave Antenna MT-262006-NRH/NLH/K

Feature

  • ■Suitable for bulk reading.
  • ■Can read some of tag at time.
  • ■Available outdoor using with IP67.

Specification

Products code MT-262006-NRH/-NLH
Frequency 902-928 MHz
Polarization character Circularly polarized wave
Antenna connector N-J
Gain 9 dBic
Dimension 305×305×25 mm
Weight 1.2 kg
Waterproof grade IP67

Circularly polarized wave Antenna MT-262013-NRH/NLH/K

Feature

  • ■Smaller than MT-262006. Suitable for limited installation space.
  • ■Available for one time reading with several tag.
  • ■Available outdoor using with IP67.

Specification

Products code MT-262013-NRH/-NLH
Frequency 902-928 MHz
Polarization character Circularly polarized wave
Antenna connector N-J
Gain 7.5 dBic
Dimension 190×190×30 mm
Weight 0.8 kg
Waterproof grade IP67

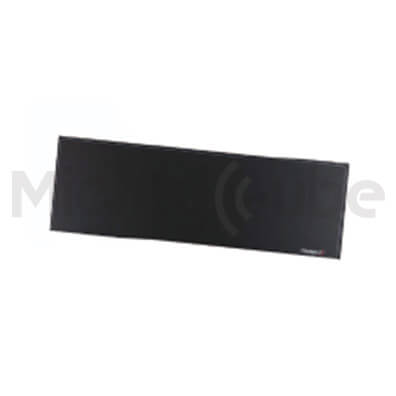

Circularly polarized wave Antenna A6034-C

Feature

  • ■Slim type antenna. It is suitable for wall mount and wide installation place.

Specification

Products code A6034
Frequency 902-928 MHz
Polarization character Circularly polarized wave
Antenna connector SMA-J
Gain 9 dBic
Dimension 747×314×12 mm
Weight 2.2 kg
Waterproof grade IP65

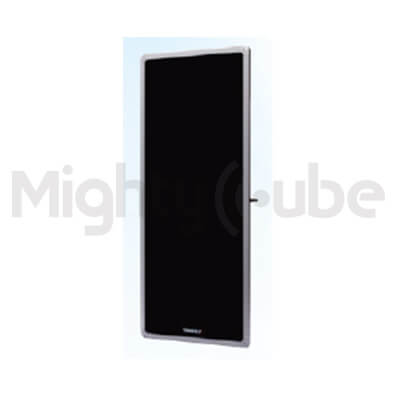

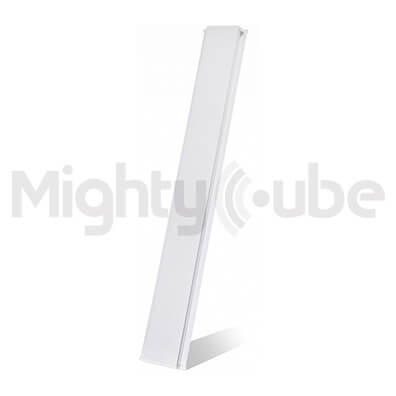

Multi-linearly polarized wave antenna series

Feature

  • ■Slim and light. Suitable for installation for Overhead and wall mount.
  • ■Widely transmit the signal, can detect wide area.
  • ■Can chose three size based on the installation location.

Specification

Products code XRAB-N1 XRAB-N2 XRAB-N3 XRAB-N2 XRAB-N3
Frequency 902~928MHz
Polarization character Multi-linearly polarized wave
Antenna connector RP-TNC-J
Gain 5.5dBi 4.5dBi 3.0dBi 4.5dBi 3.0dBi
Dimension 2210×230×38mm 1550×230×38mm 910×230×38 1550×230×38mm 910×230×38
Weight 1.8kg 1.4kg 0.8kg 1.4kg 0.8kg
Ground Antenna
ApplicationFor On floor or underground installation.

Ground mat antenna A5530 L / C

Feature

  • ■Slim size, thickness 12mm. Can directly install on the floor.
  • ■Suitable for reading hand track or basket truck at wide entrance where difficult install overhead or portal type antenna.

Specification

Products code A5530
Frequency 920-928 MHz
Polarization character linearly polarized wave
Antenna connector SMA-J
Gain 10dBi
Dimension 1220×600×12mm
Weight 8.4kg
Waterproof grade IP66

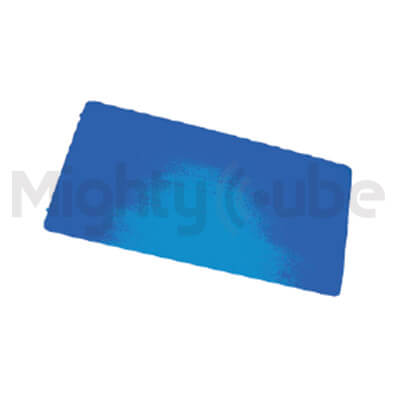

Ground mat antenna A6590C

Feature

  • ■More Slim size ,thickness 6mm and can reading wide area.
  • ■Suitable for reading hand track or basket truck at wide entrance where difficult install overhead or portal type antenna.

Specification

Products code A6590C
Frequency 902-928 MHz
Polarization character Circularly polarized wave
Antenna connector SMA-J
Gain 7 dBic
Dimension 910×300×8 mm
Weight 2 kg
Waterproof grade IP65

HF (13.56MHz) Antenna

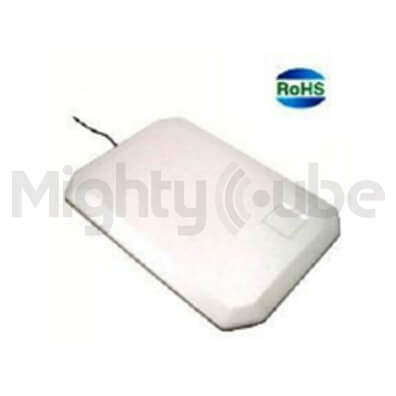

PAD Antenna FANT340/240

Feature

  • ■A4size slim antenna which Designed by desktop using concept.
  • ■Communication distance will reach at 30cm. (FMR102-A/-USB/-POE) and (FMR200-A/-E)
  • ■Environmental durability : IP20

Specification

Products code FANT340/240
Frequency 13.56MHz
Maximum input power 1.2W
Maximum reading range 30cm
Antenna connector SMA-P
Antenna cable RG174. 2.3m
Operate temperature 0~+55℃
Storage temperature -25~+85℃
Dimension 337×237×8.3 mm
Weight 530g
Material of main unit Plastic(ASA/UL94HB)
Color White gray
Waterproof grade IP20
EMC standard EN 300 683
Material of bottom plate -

310×310 Antenna FANT310/310

Feature

  • ■310×310 antenna can be use FLR2500 and FMR102 antenna.
  • ■Environmental durability : IP65
  • ■Communication distance.
    Using FL2500 : Approximately 60cm.
    Using FMR102-A/-U/-PoE : Approximately 40cm.

Specification

Products code FANT310/310
Frequency 13.56MHz
Maximum input power 4W
Maximum reading range 60cm
Antenna connector SMA-P
Antenna cable RG58. 3.6m
Operate temperature -25~+55℃
Storage temperature -25~+60℃
Dimension 318×338×30 mm
Weight About 700g
Material of main unit Plastic(ASA)
Color White
Waterproof grade IP65
EMC standard EN 300 489

Crystal gate FANT1690/600-A/-B

Feature

  • ■Best performance, detection range 95cm with3D reading.
  • ■Abundant installation case at Library.
  • ■Product code : FANT1690/600 series.
  • ■Built in FLR2500.
  • ■Stylish design.
  • ■Compatible with world standard tag format.
    ISO/IEC15693 (I・CODE SLI、my-d、Tag-it HF-I、Fujitsu、STMLRI512/64)
    ISO/IEC18000-3 mode1、I・CODE
  • ■Three type interface.
    RS232C、USB(USB2.0)、Ethernet(TCP/IP)

Specification

Products code FANT1690/600-A/-B
Frequency 13.56MHz
Maximum input power 8W
Maximum reading range 95cm
Antenna connector SMA-J
Antenna cable RG58. 6m
Operate temperature -25~+50℃
Storage temperature -25~+70℃
Dimension 600×1690×75 mm
Weight A:23kg B:21.5kg
Material of main unit Main unit: Plastic (ABS).
Antenna : Acrylic
Color Main unit cover : Signal white RAL9003
Antenna : Transpearent
Waterproof grade IP43
EMC standard EN 301 489

If you have further questions, contact from below links.
