Antenna

Overhead type Antenna

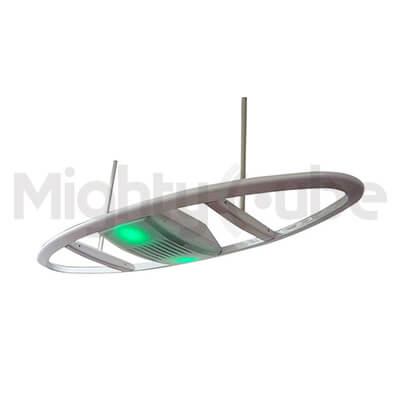

Super ANTIVOL Overhead Type Antenna

Feature

  • ■The world’s 1st Overhead system built-in transceiver.
  • ■All in one design antenna. Easy installation.
  • ■It can link with external device such as CCTV, remote speaker by relay function.

Specification

Products code SAG-OH/AC
Dimension H150×W1500×D500(mm)
Weight 4.9kg
Power supply AC100～240(V)±10%　50/60Hz
Consunption Standard 70W
Detection range H3.0m × W4.0m * With Super ANTIVOL type tag.

*Detection performance depend on installation environment.

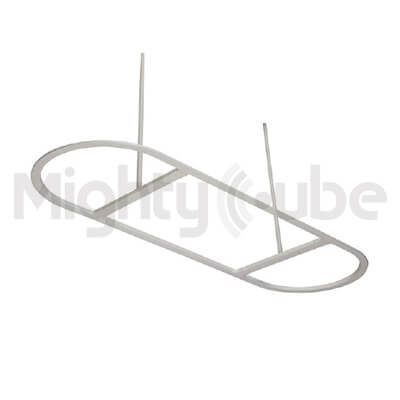

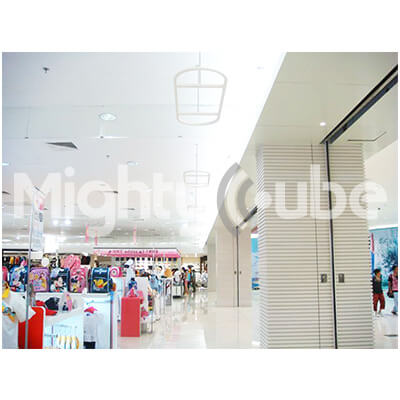

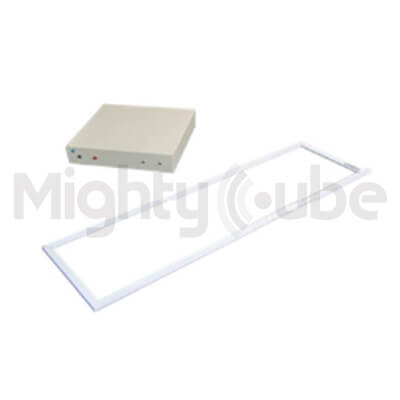

ANTIVOL Overhead Type Antenna

Feature

  • ■Overhead type can keep wide design entrance and not disturb customer visiting.
  • ■Can chose Middle or Large type based on entrance width.
  • ■Separated antenna and amplifier. You can add antenna based on entrance width. (one amplifier can connect Max two antenna).

Specification

Products code KCP-1S KCP-1L CFS-TX22/220V KCP-1L CFS-TX22/220V
Dimension H30×W1000×D400(mm) H30×W1500×D500(mm) H75×W330×D335(mm) H30×W1500×D500(mm) H75×W330×D335(mm)
Weight 3.0kg 3.5kg 4.0kg 3.5kg 4.0kg
Power supply N/A N/A AC220V±10%　50/60Hz N/A AC220V±10%　50/60Hz
Consunption N/A N/A Standard 60W N/A Standard 60W
Detection range H3.0m × W3.0m
*With ANTIVOL V tag. H4.0m × W4.0m
*With ANTIVOL V tag. TX type. 		H4.0m × W4.0m
*With ANTIVOL V tag.		 TX type.

*Detection performance depend on installation environment.

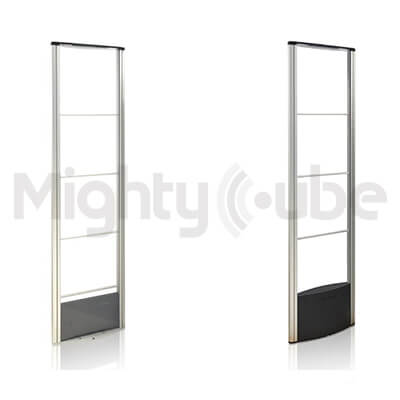

Pedestal type Antenna

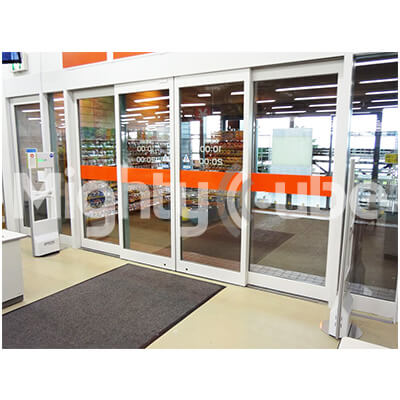

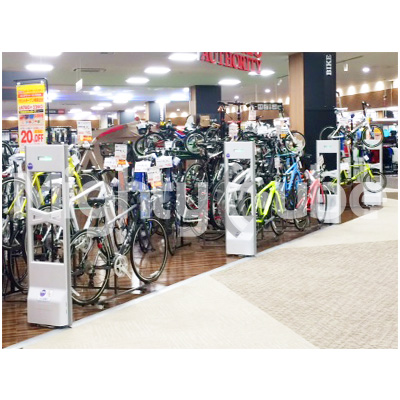

Super ANTIVOL Broad Gate System

Feature

  • ■Detection distance can reach 12m by only two antenna.
  • ■It can cover a wider area with fewer units. Fewer physical pieces means the cost of installation and maintenance goes down.
  • ■All in one design antenna. Easy installation.
  • ■It can link with external device such as CCTV, remote speaker by relay function.

Specification

Products code 4R3-PE
Dimension H1,525×W450×D150(mm)
Weight 16.0kg
Power supply AC100～240(V)±10%　50/60Hz
Consunption Standard 55W
Detection range One antenna : 6.0m , Two antenna: 12.0m *With Super ANTIVOL type tag.

*Detection performance depend on installation environment.

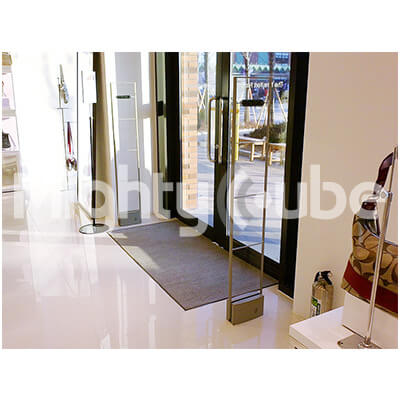

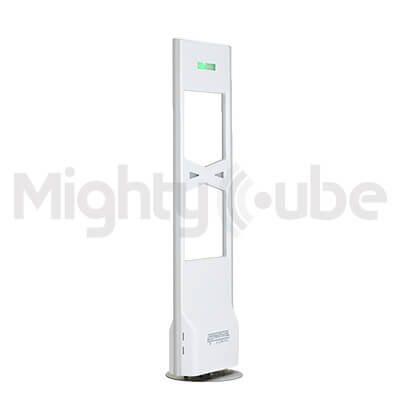

ANTIVOL Solid Gate System

Feature

  • ■Detection distance can reach 7.2m by only two antenna.
  • ■All in one design antenna. Easy installation.
  • ■It can link with external device such as CCTV, remote speaker by relay function.

Specification

Products code 5R-PE
Dimension H1,525×W450×D150(mm)
Weight 16.0kg
Power supply AC100～240(V)±10%　50/60Hz
Consunption Standard 30W
Detection range One antenna : 3.6m , Two antenna:7.2m *With ANTIVOL V type tag.

*Detection performance depend on installation environment.

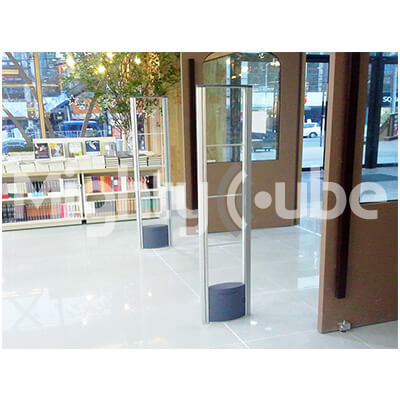

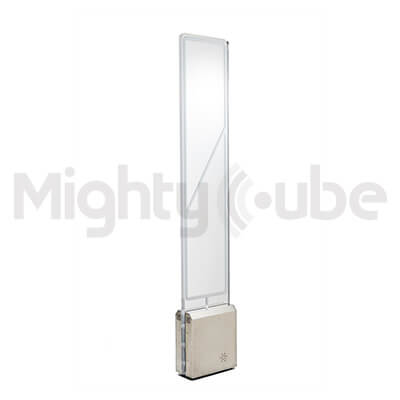

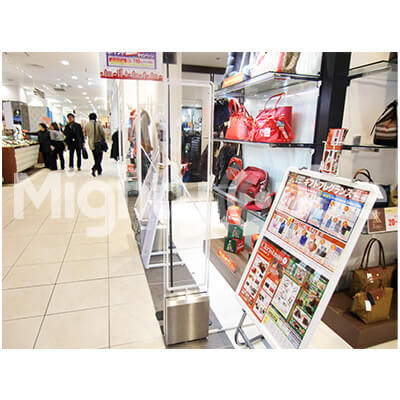

ANTIVOL AQUA Gate system

Feature

  • ■Transparent design antenna. It fits any store of design and does not give discomfort to customer.
  • ■Detection distance can reach 7.2m by only two antenna.
  • ■All in one design antenna. Easy installation.
  • ■It can link with external device such as CCTV, remote speaker by relay function.

Specification

Products code CLG-PE
Dimension H1620×W288×D135(mm)
Weight 22.0kg
Power supply AC100V～240V±10%　50/60Hz
Consunption Max 25W
Detection range One antenna : 3.6m , Two antenna:7.2m *With ANTIVOL V type tag.

*Detection performance depend on installation environment.

NEDAP FL system

Feature

  • ■Can chose Middle and Large type based on Entrance wide.
  • ■Antenna panel has Eight type color. It is replaceble for each shop color image.
  • ■Antenna can add the advertisement panel for store promotion.
  • ■It can link with external device such as CCTV.

Specification

Products code FL35 FL45 FL45
Dimension H1665×W322×D100(mm) H1668×W462×D100（mm) H1668×W462×D100（mm)
Weight 9.0kg 11.0kg 11.0kg
Power supply AC100～240　50/60Hz AC100～240　50/61Hz AC100～240　50/61Hz
Consunption Max 12W Max 12W Max 12W
Detection range Sigle 1.6m Dual 3.2m
*Use hard tag Sigle 2.0m Dual 4.0m
*Use hard tag 		Sigle 2.0m Dual 4.0m
*Use hard tag

*Detection performance depend on installation environment.

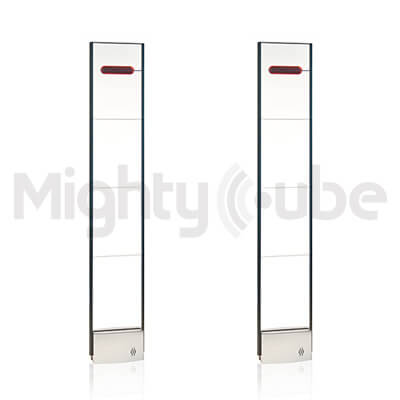

NEDAP PG Series

Feature

  • ■Can chose Middle and Large type based on Entrance wide.
  • ■Transparent design antenna. It fits any store of design and does not give discomfort to customer.
  • ■It can link with external device such as CCTV.

Specification

Products code PG27 PG39 PG39
Dimension H1532×W273×D104(mm) H1672×W389×D103(mm) H1672×W389×D103(mm)
Weight 11.0kg 20.0kg 20.0kg
Power supply AC100～240　50/60Hz AC100～240　50/61Hz AC100～240　50/61Hz
Consunption Max 12W Max 12W Max 12W
Detection range Sigle 1.6m Dual 3.2m
*Use hard tag Sigle 2.0m Dual 4.0m
*Use hard tag 		Sigle 2.0m Dual 4.0m
*Use hard tag

*Detection performance depend on installation environment.

Floor type Antenna

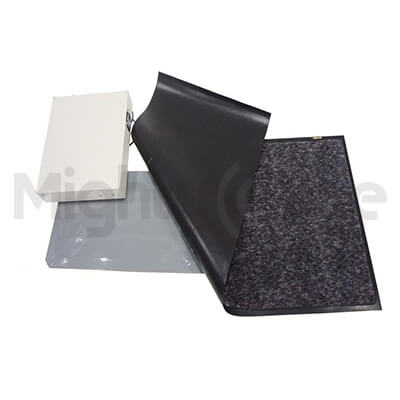

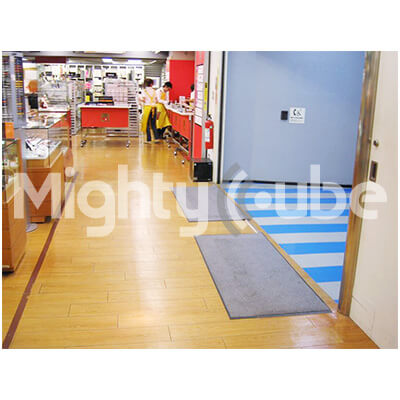

ANTIVOL Floor mat antenna system

Feature

  • ■Flat design antenna for barrier free.
  • ■Freely put on antenna anywhere.
  • ■Separated type. You can add antenna based on entrance width.
    (One amplifier can connect Max two antenna).

Specification

Products code YPS-AS CFS-TX33/AC CFS-TX33/AC
Dimension H4×W1000×D320(mm) H75×W330×D335(mm) H75×W330×D335(mm)
Weight 3.0kg 3.5kg 3.5kg
Power supply N/A AC100V～240V±10%　50/60Hz AC100V～240V±10%　50/60Hz
Consunption N/A Max 12W Max 12W
Detection range H1.8m  W:2.4m
*With ANTIVOL V type tag. TX type. 		TX type.

*Detection performance depend on installation environment.

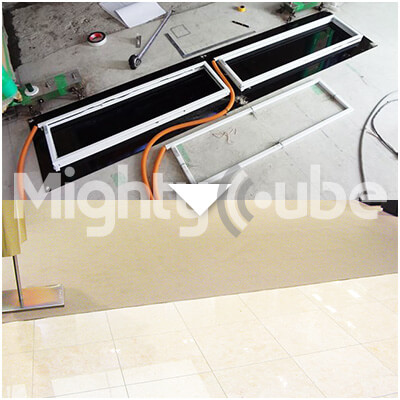

ANTIVOL　Under ground antenna system

Feature

  • ■Under floor system, the antenna embedded in the floor during the store opening preparation process . It completely meet barrier free and keep the store aesthetics.
  • ■Separated type. You can add antenna based on entrance width.
    (One amplifier can connect Max two antenna).

Specification

Products code KUM-AS KUM-AL CFS-TX33/AC KUM-AL CFS-TX33/AC
Dimension H30×W1000×D400(mm) H30×W1500×D500(mm) H75×W330×D335(mm) H30×W1500×D500(mm) H75×W330×D335(mm)
Weight 3.0kg 3.5kg 3.5kg 3.5kg 3.5kg
Power supply N/A N/A AC100V～240V±10%　50/60Hz N/A AC100V～240V±10%　50/60Hz
Consunption N/A N/A Standard 60W N/A Standard 60W
Detection range H3.0m × W3.0m
*With Super ANTIVOL type tag. H4.0m × W4.0m
*With Super ANTIVOL type tag. TX type. 		H4.0m × W4.0m
*With Super ANTIVOL type tag.		 TX type.

*Detection performance depend on installation environment.
