UHF(920MHz) Reader / Writer
Premises radio station type Speedway Revolution R420-JP2
Feature
- ■Top share reader / writer in the world. High sensitivity receiver and reading function.
- ■Widely can use it for bulk reading, portal gate system etc.
- ■Compatible with EPC global UHF Class1 Gen2/ISO18000-63 (TypeC). It’s based upon domestic Radio regulation.
- ■Compact size and light(190×175×30mm, 680g)
- ■Environmental compatibility (IP52 and Rohs)
- ■It can connect max 4 antenna.
*Expand antenna number from 4 to 32 pcs by antenna HUB
Specification
| Products name | SpeedwayRevolution R420-JP2 |
|---|---|
| Aerial Interface | EPCglobal UHF Class1 Gen2/ISO 18000-63（TypeC） |
| Radio standard | Specified low power radio station 920MHz mobile identification equipment. |
| Frequency | 916.8，918.0，919.2，920.4MHｚ |
| Antenna port | TNC Reverse type connector |
| Transmission power | ＋10.0dBm～＋30.0dBm |
| Interface | Ethernet，Compatible with PoE |
| Operate temperature | －20℃～＋50℃ |
| Power supply | TNC Reverse type connector |
| Dimension | 190ｘ175ｘ30mm |
| Weight | 680g |
Specified low power radio type Desktop type UFH RFID reader / writer MRU102 series
Feature
- ■Since it is Specified low power radio type, registration is not required.
- ■Best design to use it on desktop.
- ■Only can use FEIG OBID protocol or LLPR standard protocol.
- ■Built-in near field antenna, it can work by stand alone.
- ■MRU102-USB and MRU102-PoE has external antenna port 3pcs, it can connect to antenas.
- ■Transmit power can be adjusted with three step level based on environment.
Specification
| Products name | MRU102-USB MRU102-PoE MRU-102-PoE-LED MRMU102-A | MRU102-PoE | MRU-102-PoE-LED | MRMU102-A |
|---|---|---|---|---|
| Aerial Interface | EPCglobal UHF Class1 Gen2/ISO 18000-63（TypeC） | |||
| Radio standard | Specified low power radio station 920MHz mobile identification equipment. | |||
| Frequency | 921MHｚ～922.2MHｚ | |||
| Antenna port | 3 port + Built-in antenna Built-in antenna 3 port + Built-in antenna1 | Built-in antenna | 3 port + Built-in antenna1 | |
| Transmission power | Three step, 17dBm, 20dBm, 23dBm | |||
| Interface | USB Ethernet，TCP/IP（Compatible with PoE） Ethernet，TCP/IP（Compatible with PoE） RS232，USB | Ethernet，TCP/IP（Compatible with PoE） | Ethernet，TCP/IP（Compatible with PoE） | RS232，USB |
| Display |
LEDｘ1 (Multi color) LEDｘ1(Multi color) LEDｘ4 LEDｘ1(Multi color) |
LEDｘ1 (Multi color) |
LEDｘ4 | LEDｘ1 (Multi color) |
| Operate temperature |
-25℃～＋55℃
-25℃～＋45℃
-25℃～＋55℃（In case of using AC/DC adaptor） -25℃～＋55℃（Under using POE） -25℃～＋55℃ |
-25℃～＋45℃ | -25℃～＋55℃（In case of using AC/DC adaptor） -25℃～＋55℃（Under using POE） |
-25℃～＋55℃ |
| Power supply | 12～24VDC（＋/-15％） | |||
| Dimension | 145ｘ85ｘ27mm 137ｘ77x17mm | 137ｘ77x17mm | ||
| Weight | 200g 60g | 60g | ||
HF(13.56MHz) Reader / Writer
FMR102 Reader Built-in Seal pad antenna [ FSPAD102 series ]
Feature
- ■FMR102 Built-in reader antenna which can use metal material.
- ■Two type model are line-up. USB and Poe type.
- ■FMR102-USB built-in model. [FSPAD102-USB]
- ■FMR102 Poe built-in model [FSPAD102-PoE]
*One LAN cable can supply communication and power supply by PoE. - ■Detection distance between antenna and tag is 25.0cm.
- ■Stylish design.
Specification
| Products name | FSPAD102-USB /PoE |
|---|---|
| Available chip | ISO15693（ｍｙ-d，I-codeSLIX，I-codeSLI，Tag-itHF-I，Fujitsu） ISO 180003-3 Mode1 |
| Frequency | 13.56MHｚ |
| Interface | －USB（USB2.0） / -PoE（Ethernet,TCP/IP） |
| Display | LED×1 (Blue) |
| Operate temperature | -25℃～＋55℃ |
| Power supply | 12～24VDC |
| Dimension | 376x276x27mm |
| Weight | 2000g |
Middle range Reader / Writer (FMR102 series)
Feature
- ■Suitable HF Reader / Writer which can use on desk top.
- ■Line-up are 3 type :FMR102-A(RS232C),FMR102-U(USB),FMR102-PoE(Ethernet,TCP/IP)
- ■Stability operation by self checking function.(SWR/,Noise,Temperature)
- ■It can use with various antenna.
- ■Environmental compatibility :IP30
- ■Transmission power : 1.2W
- ■Read range will be 30cm with antenna [FANT340/240]
Read range will be 40cm with square antenna [FANT310/310]
Specification
| Products name | FMR102 －A/-USB/PoE |
|---|---|
| Available chip | ISO15693（ｍｙ-d，I-codeSLIX，I-codeSLI，Tag-itHF-I，Fujitsu） ISO 180003-3 Mode1 |
| Frequency | 13.56MHz |
| Antenna port | SMA-J |
| Interface | －A（RS232）/ |
| Display | LEDｘ１（Multi color） |
| Operate temperature | －25℃～＋55℃ |
| Power supply | 12～24VDC |
| Dimension | 145x85x27mm |
| Weight | 200g |
Short range writer (FCPR30-USB)
Feature
- ■Suitable Built-in antenna which can use on side desk or counter top.
- ■Line-up are 3 type :FMR102-A(RS232C),FMR102-U(USB),FMR102-PoE(Ethernet,TCP/IP)
- ■Stability operation by self checking function.(SWR/,Noise,Temperature)
- ■It can use with various antenna.
- ■Environmental compatibility :IP30
- ■Transmission power : 1.2W
- ■Read range will be 30cm with antenna [FANT340/240]
Read range will be 40cm with square antenna [FANT310/310]
Specification
| Products name | FCPR30-USB |
|---|---|
| Available chip | ISO15693（ｍｙ-d，I-codeSLIX，I-codeSLI，Tag-itHF-I，Fujitsu） ISO14443‐A（mifare classic(Only UID), mifareUltra Lite, mifare DESFire) ISO14443-B ISO14443-4 Full Supported NFC (Type2 and Type4 in Read/Write and Emulation Mode) |
| Frequency | 13.56MHｚ |
| Interface | －USB |
| Display | LED×2 (Green/Orange), Buzzer |
| Operate temperature | －20℃～＋60℃ |
| Power supply | ５V USB BusPowered |
| Dimension | 114x84x18mm |
| Weight | 105g |

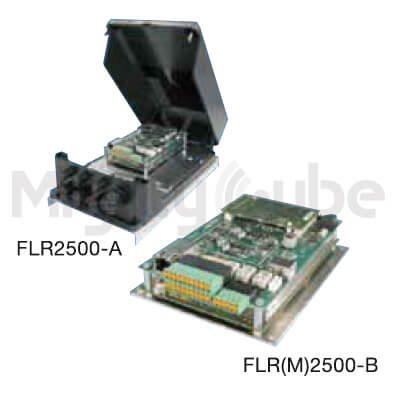

Long range reader (FLR2500)
Feature
- ■FLR 2500 can match various interface [RS232C,RS285,USB(USB2.0),Ethernet(TCP/IP)
- ■It has automation tuning function which can work with various installation environment.
- ■High output reader / writer (4W～12W)
*Output power depends on antenna type.
Specification
| Products name | FLR2500-A（Unit）/-B（Module） |
|---|---|
| Available chip | ISO15693（ｍｙ-d，I-codeSLIX，I-codeSLI，Tag-itHF-I，Fujitsu） ISO 180003-3 Mode1 |
| Frequency | 13.56MHｚ |
| Antenna port | SMA-J |
| Interface | RS232,RS485 ,USB,Ethernet（TCP/ IP） |
| Display | LEDｘ5 |
| Operate temperature | －25℃～＋55℃ |
| Power supply | 24VDC |
| Dimension | Unit：320ｘ180x110mm Module：160x120x46mm |
| Weight | Unit：1.9kg Module：0.6kg |
