Tag

Line-up for linen and supply and laundry

Laundry tag (TLD020)

Feature

  • ■ Thin type tag (0.2mm at thinnest point) can withstand pressure and bending.
  • ■Normal reading distance exceeds 2m.
  • ■Small size will fit in folds of clothing.
  • ■Durable against washing detergent.
  • ■High heat resistance that can withstand heat irons exceeding 200 ℃.

Specification

Products code TLD020
Dimension 43x9x0.2mm
Reading distance 2m
Memory size 96bit

Flexible linen tag (TLN040-G) for linen and supply

Feature

  • ■Compatible with dehydration presses and high durability.
  • ■Prevent false alarms when triggering with meter inspectors.
  • ■Flexible format allows for attaching anywhere.
  • ■Compatible with dry cleaned products
    Resistant to cleaning detergents.

Specification

Products code TLN040-G
Dimension 60x50x1mm
Reading distance 6m
Memory size 96bit+Usermemory 32bit

Line-up for Asset management tag

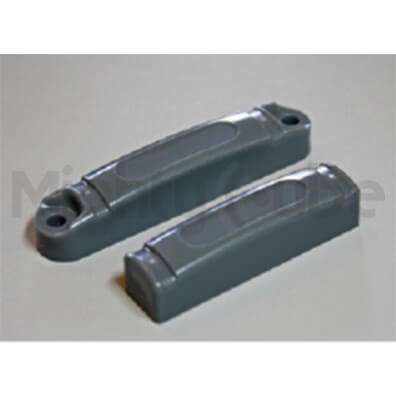

Exo600 Tag for metal material.

Feature

  • ■Good cost performance and size.
  • ■Best use for Logistics or wheeled box pallet.
  • ■Two type of shape based on attachment place.

Specification

Products code Exo600
Dimension 80×15×12.2mm
Reading distance 6m
Memory size 96bit+User512bit
IP Protection Rating IP68

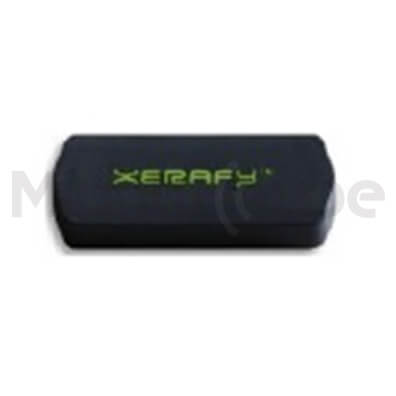

Nanox Ⅱ Tag for metal material and Heat-resistant.

Feature

  • ■Best select for small size metal products.
  • ■Heat-resistant and compatible with metal material.
  • ■Heat-resistant temperature 150℃.

Specification

Products code NanoxⅡ
Dimension 31.7×12.8×4.8mm
Reading distance 6m
Memory size 96bit+User512bit
IP Protection Rating IP68

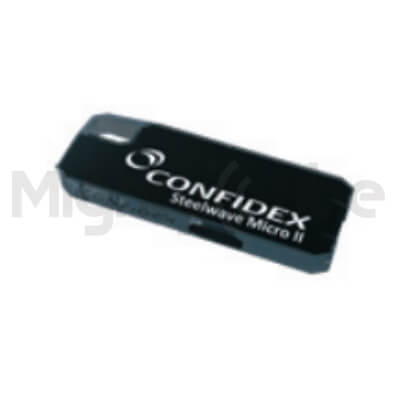

STEELWAVE MICROⅡ Small type tag for metal material.

Feature

  • ■Compatible for metal material.
  • ■Three attach way are available.(Adhesive,Band,Hook)
  • ■Best use for key or cable management.

Specification

Products code STEELWAVE MICROⅡ
Dimension 38 x 13 x 4.5 mm
Reading distance On metal.3m
Memory size 96bit+User512bit
IP Protection Rating IP67

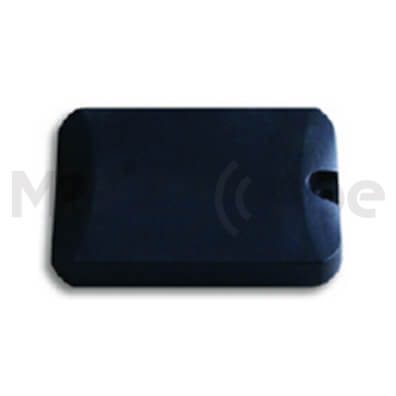

MicroXⅡ Paint Shop Version Tag for metal material and Heat-resistant.

Feature

  • ■Best use for painting line.
  • ■Heat-resistant and compatible with metal material.
  • ■Heat-resistant temperature 250℃. Three hour

Specification

Products code MicroX Ⅱ Paint Shop Version
Dimension 51x36.3x7.5mm
Reading distance 10m
Memory size 96bit+User512bit
IP Protection Rating IP68

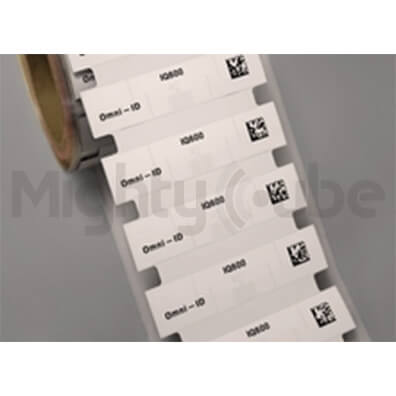

IQ600 Label type tag for metal material.

Feature

  • ■Very thin type label type tag.
  • ■Available for  thermal transfer printing.
  • ■Best use for IT, metal asset or tool .

Specification

Products code IQ600
Dimension 96x24x1.1mm
Reading distance 4m
Memory size 96bit+User512bit
IP Protection Rating IP68

Label tag for document management

Feature

  • ■It is possible to bulk reading even stuck file wich stucked 1~2mm.
  • ■Best use for document and file or folder.
  • ■Thin type label tag.

Specification

Products code lamination layer label
Dimension 28x85mm
Reading distance 6m(In case of attach to paper.)
Memory size 128bit

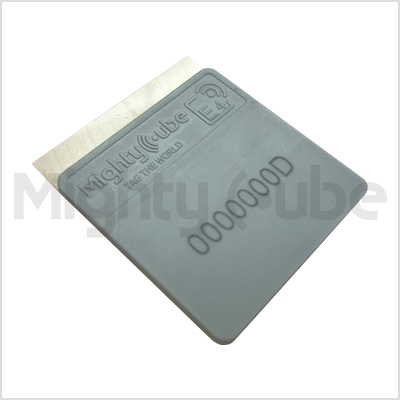

Pallet type tag

Feature

We will design and produce for special tag such as pallet tag or heat-resistant tag.
If you have any request, please contact us. (QTY from 100Kpcs)

Specification

Dimension 50x50x2.9mm
Reading distance 3m
Memory size 96bit
IP Protection Rating IP68

If you have further questions, contact from below links.
